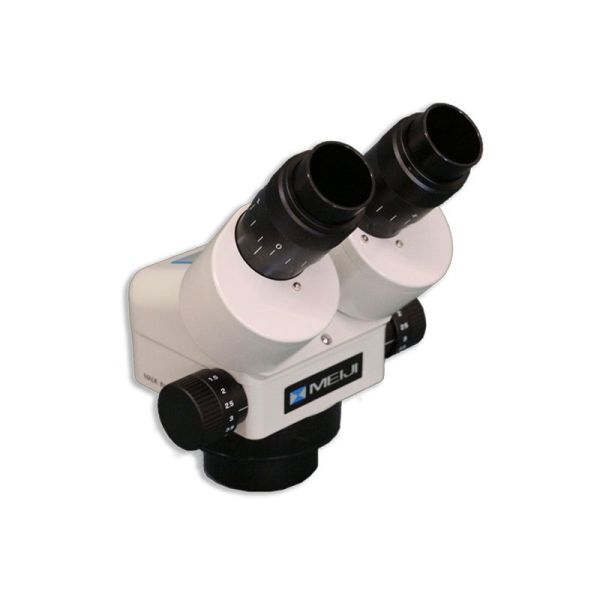

Meiji EMZ-5 Scope Body Zoom 0.7X-4.5X White
The EMZ-5 body delivers sharp, high-contrast images and an excellent zoom range of 6.5:1 that provides exceptionally high-resolution images all throughout the zoom range. The EMZ-5 employs Greenough optics, for improved image flatness and contrast. As a result, images are brighter and more distinct at the periphery of the field of view. With the large zoom range, the EMZ-5 offers high resolution observation in precision-oriented semi-conductor, medical device and routine inspection. In addition to its compact design and versatility a wide variety of auxiliary lenses and stands are available to allow the user to customize their desired working distance to adapt to almost any application.
Specifications:
Body: Binocular, Rotatable 360°, Cast Aluminum Alloy Construction
Zoom Ratio: 6.5:1
Zoom Range: 0.7x – 4.5x
Zoom Knobs Markings: 0.7, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5
Zoom Control: Dual, graduated, bilateral
Magnification: 7x – 45x (10x eyepieces)
Objective Lens: Brass Construction
Field of View: 32mm – 5.1mm
Working distance: 93mm
Eyetube Inclination: 45°
Eyepieces: 5x, 7.5x, 10x, 12.5x, 15x, 20x, and 30x (optional)
Interpupillary Distance: 54mm – 75mm
Dioptric Adjustment: Dual (+/- 5 diopters)
Extended Mag Range: 2.1x – 270x (With auxiliary lenses and eyepieces)
Extended Working Distances: 34mm – 251mm (With auxiliary lenses and eyepieces)
Auxiliary Lenses: 0.3x (252mm), 0.44x (181mm), 0.5x (150mm), 0.75x (97mm), 1.5x (49mm), and 2x (34mm) (optional)
Mounting: Fits 76mm (2.99″) Diameter Focus Holders
Manufacturer: MADE IN JAPAN
Warranty: LIMITED LIFETIME WARRANTY
Includes:
• Meiji Techno Dust Cover (MA703)
• Rubber Eyeguards/Eyeshields (Paired) (MA600)
• EMZ Meiji Techno Instruction Manual
• Limited Lifetime Warranty Card
