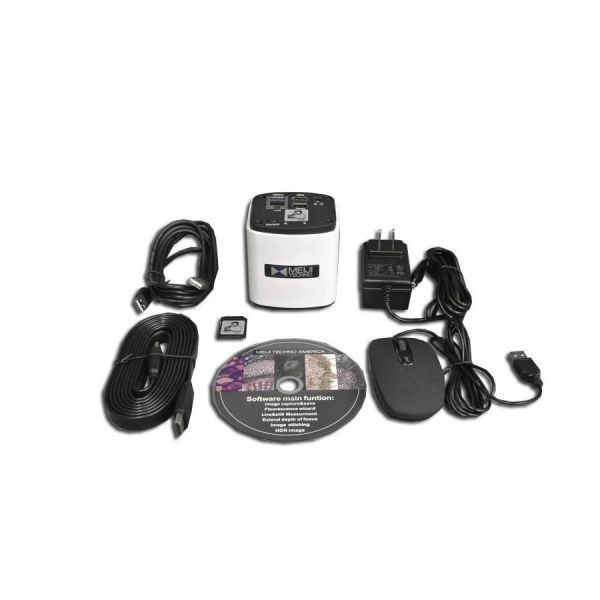

Meiji HD4000K Camera 4K, USB 3.0, GigE output, Internet Live Stream
The HD4000K is a full featured 8 MP camera with LAN, USB 3.0, HDMI capability with a 1/3” Sony IMX183C CMOS chip. A standard C-mount adapter with a 0.3X C-mount adapter (MA151/35/03) is needed to attach it to any standard Meiji Techno America Trinocular Microscope. The HD4000K features a full 8MP 4K (3840×2160), HDMI: 30fps@3840×2160, USB 3.0: 25fps@3840×2160, Ethernet: 30fps 3840×2160 resolution, which provides high fidelity images with a refresh rate of 30fps-frames per second when connected via HDMI, so there is absolutely no lag in the live video feed when moving your specimen or part. Images are save as a JPG/TIFF. USB 3.0: JPG/PNG/TIFF/DICOM and Ethernet: JPG/PNG/TIFF/DICOM.
The HD4000K can be mounted directly to any HDMI monitor or PC via USB 3.0: Connect to a computer or U disc. LAN: Connect to the internet, USB 2.0: Connects a mouse. HDMI connectivity and can be used with the provided USB 2.0 mouse, with this the user can access menus that provide all the features of the camera such as exposure, white balance, color control (red or blue), gamma, brightness, sharpness, saturation, denoise, color temperature plus allows the user to save images and videos directly on the full SD card due to the onboard operating system. You can flip the image horizontally, vertically, do a split screen where-in one side of the monitor is a live image and the other half is the captured image. You can also digitally increase/decrease the zoom if needed if your stereo system has reached it’s magnification potential, this will give you the added digital magnification needed. You can also superimpose a cross-line reticle directly on your live image, first click gives you a red line second click gives you a green line, and the third click omits the crossline. Our new pause capture button icon also freezes the last image on the screen. The live video and still shots can be saved directly on the removable USB Drive for subsequent image capture. All this is achieved without the need for a PC.
LAN Net Settings can be selected: Wired, Wireless, UniCast, Muticas, Get IP automatically, Input of IP Address, Subnet Mask, Default gateway, DNS Server, MAC Address. Auto White Balance buttons, Manual White Balance and Regional White balance buttons are also available.
Language can also be changed to Spanish, English, Japanese, Chinese.
Connectivity direct to any monitor or TV with a HDMI port for a wider view if necessary. You can also attach a wireless mouse if you choose to go wireless with a third party mouse.
The HD4000K is equipped with a complete basic Measurement software that can be utilized when connecting directly to a PC. The HD4000K provides measurement functionality when connected to a PC including: freehand lines, rectangles, polygons, circles, bi-circles, angles, point-line distance and much more. The unique calibration and magnification functions coupled with the ability to export the results to Excel or text files, make measurements more convenient and simple.
Physical Camera size: 105.7 x 78 x 70.8 (mm)
Physical Weight: 505g
Operating system compatibility is Windows 7/8/10 (32bit/ 64bit)
