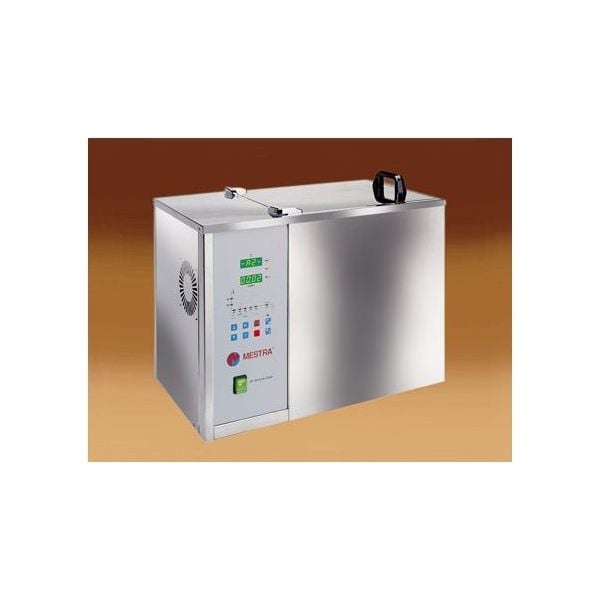

Mestra E2 Washing, Polymerizing, Curing System
$4,999.00
SKU
MES 080060
This Unit ships via freight. Call to order.
Inside Dimensions -
Height: 350 mm
Width: 320 mm
Length: 400 mm
Inside Dimensions -
Height: 350 mm
Width: 320 mm
Length: 400 mm
The E2 washing and polymerizing machine is equipped with a processor to control the temperature according to two set programs.
1º Program 1 (Shower program)
a) The operator or user can set a temperature (e.g. 80 °C) so that the E2 washer/polymerizer is ready to shower at all times.
b) Shower time required.
2 º Program 2 (polymerization program)
a) Delayed start time in hours and minutes from 0.00 to 99.59. This means the program can be set to run at a particular time. This delay cuts in each time the program is started.
b) Duration of each controlled temperature increase gradient in hours and minutes from 0.00 to 99.59.
c) Required holding time at each temperature plateau in hours and minutes from 0.00 to 99,59.
d) Shower time required. Polymerization: 12 flasks with R - 030380 clamps, 95 °C. Scalding: 6 flasks (open type) (±8 minutes) 85 °C. Casing: Stainless steel.
STANDARD UL 61010C-1
TECHNICAL CHARACTERISTICS
OUTSIDE DIMENSIONS:
Height (without handle): 450 mm
Width: 635 mm Length (with drop): 405 mm
Weight: 34 kg / 75 lbs
Supply voltage: 230 V, 50/60 Hz
Rated power: 2200+400 W
INSIDE DIMENSIONS:
Height: 350 mm
Width: 320 mm
Length: 400 mm
1º Program 1 (Shower program)
a) The operator or user can set a temperature (e.g. 80 °C) so that the E2 washer/polymerizer is ready to shower at all times.
b) Shower time required.
2 º Program 2 (polymerization program)
a) Delayed start time in hours and minutes from 0.00 to 99.59. This means the program can be set to run at a particular time. This delay cuts in each time the program is started.
b) Duration of each controlled temperature increase gradient in hours and minutes from 0.00 to 99.59.
c) Required holding time at each temperature plateau in hours and minutes from 0.00 to 99,59.
d) Shower time required. Polymerization: 12 flasks with R - 030380 clamps, 95 °C. Scalding: 6 flasks (open type) (±8 minutes) 85 °C. Casing: Stainless steel.
STANDARD UL 61010C-1
TECHNICAL CHARACTERISTICS
OUTSIDE DIMENSIONS:
Height (without handle): 450 mm
Width: 635 mm Length (with drop): 405 mm
Weight: 34 kg / 75 lbs
Supply voltage: 230 V, 50/60 Hz
Rated power: 2200+400 W
INSIDE DIMENSIONS:
Height: 350 mm
Width: 320 mm
Length: 400 mm
