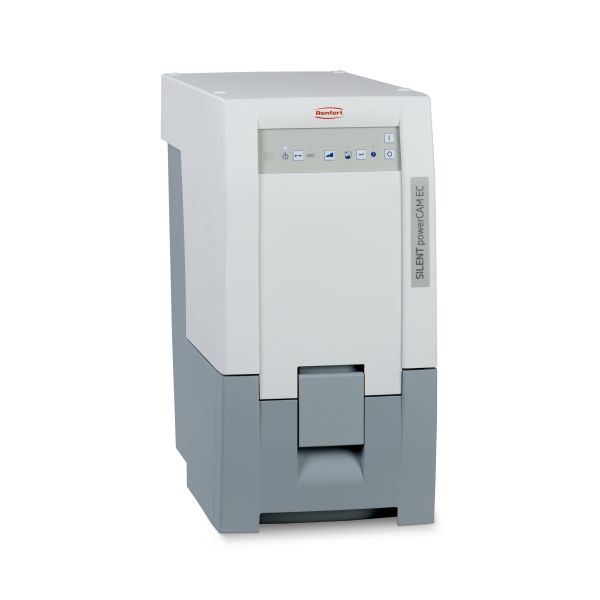

Silent Power CAM EC Extractor
$2,417.05
SKU
REN 29391000
Powerful, bag-free extraction unit with automatic filter cleaning and EC motor technology for heavily used CAM units.
ntages
- Bi-directional communication between extraction unit and CAM unit thanks to the PLC interface.
- Low operating noise of max. 54.3 dB(A).
- Safe production process through low-maintenance EC motor technology (> 5 000 operating hours).
Details
- High volume flow of approx. 4.000 l/min.
- No follow-up costs due to bag-free dust collection.
- Safe disposal of fine milling dust with the help of a disposal bag.
Permissible mains voltage: 120V
Permissible mains frequency: 50/60 Hz
Nominal voltage: 120 V
Suction turbine power: 1440 W (120 V)
Volume flow (max.): 3984 l/min, 2.34 ft³/s
Max. depression: 262 hPa, 3.8 psi
Motor technology: EC
Filter technology: Bag-Free
Filter quality: Class M according to EN 60335-2-69
CAM interface: RJ 45 socket
PLC: Input signal: 2 x turbine suction level 1, suction level 2, turbine off, filter cleaning
PLC: Output signal: 2 x filter cleaning – status information
Mains input fuse: 2 x 15 A(T)
Number of suction hoses: 1
Sound pressure level (LpA) (at max. volume flow): 54,3 dB(A)
Weight (empty): ~18 kg/~39.7 lbs
Dimensions (W x H x D): 270 x 535 x 540 mm/10.6 x 21.1 x 21.2 "
Ø suction fittings interior: 42 mm/1.65 "
Fill level dust drawer: ~7 l/~1.85 gal
