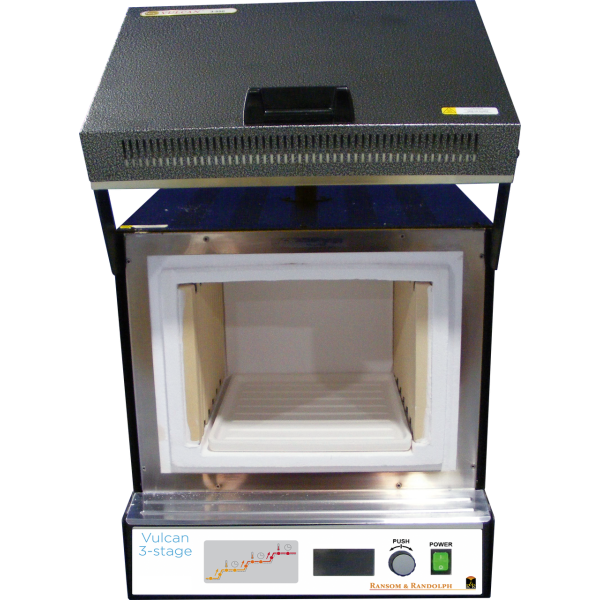

Vulcan 3-130 100-120V

Three-stage digital programmable models have nine multi-stage programs, a hold temperature program, and a delay start option which allows a program's start time to be delayed for up to seven days.

Each Vulcan is constructed with a heavy gauge steel cabinet finished with a durable baked enamel coating. The vertical lift door directs heat away from the operator and is standard for safety and space conservation. Each furnace comes with a 1-Year Limited Warranty.

​Features

•


  High performance hybrid muffle





•


  Longer life, more durable than fiber construction





•


  Faster heating and cooling than full firebrick





•


  Integrated door safety switch





•


  Durable stainless steel front panel





•


  Digital controller: nine multi-stage programs, rate, hold time, delay start, alarm, °F/°C operation




​TECHNICAL DATA:

Wide Operating Temperature Range: 77-2012°F (25-1100°C)
Ambient Storage Temperature Range: 41-104°F (5+40°C)
Programmable Heat Rate: 1-54°F/min (1-30°C/min)
Programmable Hold Time: 0:00-99:59 hrs.
Muffle Temperature Uniformity: ±15°F (±8°C) at steady state
Operating Temperature (Ambient): 41-104°F (5-40°C)
Electrical: 50-60 Hz

Volts: 100-120V
Amps: 12 A
Watts: 1440 W
Watts to Maintain 1832°F (1000°C) (Air Exchange setting at 0): 525
Weight: Furnace: 25 lbs. (11 kg), Shipping: 35 lbs. (16 kg)

​2 Year Warranty

Dimensions:

Muffle: 4.6"W x 5.7"H x 5.2"D

Cabinet: 13.8"h x 11.5"W x 13"D (20"H with door opened)
